Introduction to Matrices

Introduction

⇒ A matrix is an array of elements (which are usually numbers) set out in a pair of brackets

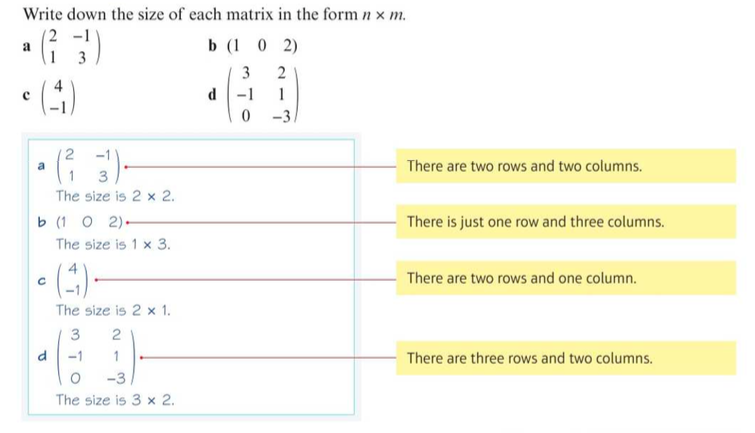

⇒ You can describe the size of a matrix using the numbers of rows and columns it contains

Introduction to matrices

⇒ A square matrix is one where the numbers of rows and columns are the same

⇒ A zero matrix is one in which all of the elements are zero. The zero matrix is denoted by 0

⇒ An identity matrix is a square matrix in which the elements of the leading diagonal (starting top left) are all 1 and the remaining elements are one. Identity matrices are denoted by Ik where k describes the size. The 3 x 3 identity matrix is:

Introduction to matrices

Introduction to matrices

Examples

Introduction to matrices

Add and Subtract Matrices

⇒ To add or subtract matrices, you add or subtract the corresponding elements in each matrix. You can only add or subtract matrices of the same size

  • Notation: matrices which are the same size are said to be additively conformable

Introduction to matrices

Multiply a Matrix

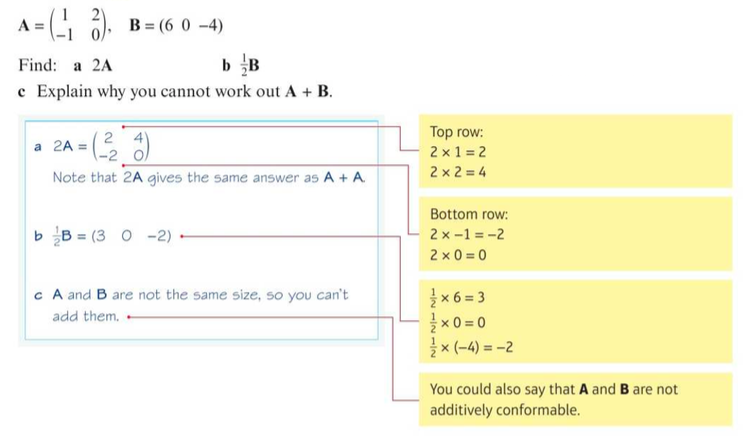

⇒ To multiply a matrix by a scalar, you multiply every element in the matrix by that scalar

Introduction to matrices

Introduction to matrices
